Apple Washing / Brushing / Vision Grading Plant
Complete apple grading plant with washing, brushing, and computer vision sorting. Capacity 5-10 TPH with 24-grade colour/size/defect classification.
- Capacity
- 5 TPH / 10 TPH
- Vision Model
- VG 600
- Grades
- 24 (colour + size + defect)
Built into the machine.
- Capacity: 5 TPH / 10 TPH
- 24-grade sorting based on colour, size, and defect
- V-Belt singulator isolation for gentle handling
- Single camera design, 9 apples/sec/3 lanes
- 360° rotation of apple on conveyor
- Size accuracy ±1mm, defect detection ±1mm
- Remote maintenance and smart screen/phone control
- Automatic crate water dumper with elevator
- Brushing/sponging/polishing section
- Stainless Steel AISI 304 construction
The numbers.
| Capacity | 5 TPH / 10 TPH |
|---|---|
| Vision Model | VG 600 |
| Grades | 24 (colour + size + defect) |
| Speed | 9 apples/sec (3 lanes) |
| Size Accuracy | ±1mm |
| Defect Detection | ±1mm |
| Singulator | V-Belt isolation |
| Rotation | 360° on conveyor |
| Construction | Stainless Steel AISI 304 |
| Control | Remote, smart screen/phone |
| Includes | Water dumper, elevator, washer, brusher, polisher, vision grader |
| Delivery | 16-20 weeks |
About the Apple Washing / Brushing / Vision Grading Plant.
Hybrid Agrobots has designed complete apple grading plants on rugged structures keeping in mind rough Indian operating conditions. The compact plant ensures minimal space requirement while maintaining full grading production capacity.

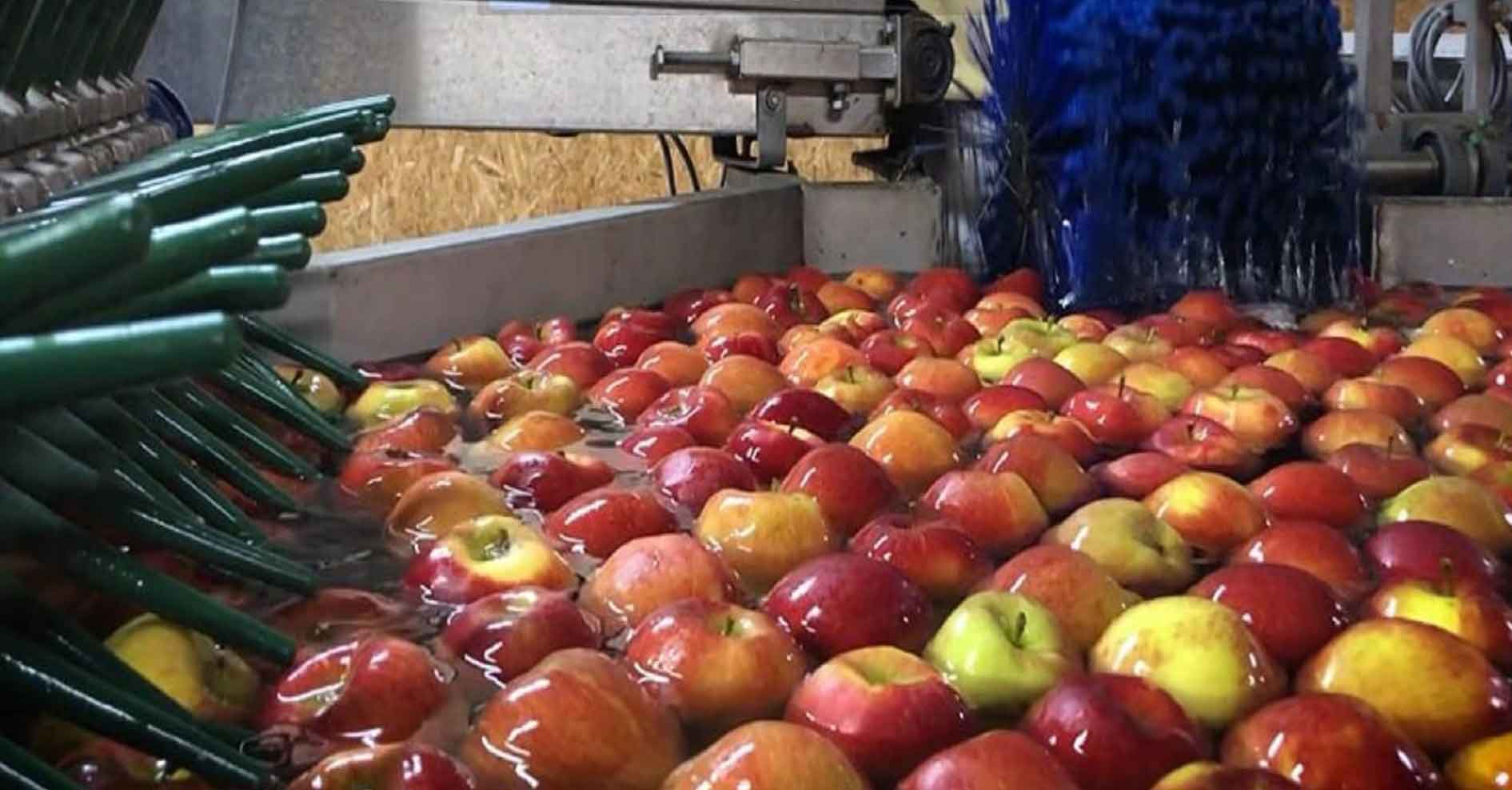

The complete plant includes an automatic crate water dumper with elevator for gentle initial handling, a washing and brushing section with soft nylon and horse hair brushes, a sponging/polishing section to bring out natural fruit shine, and the VG 600 vision grading machine for precision sorting.

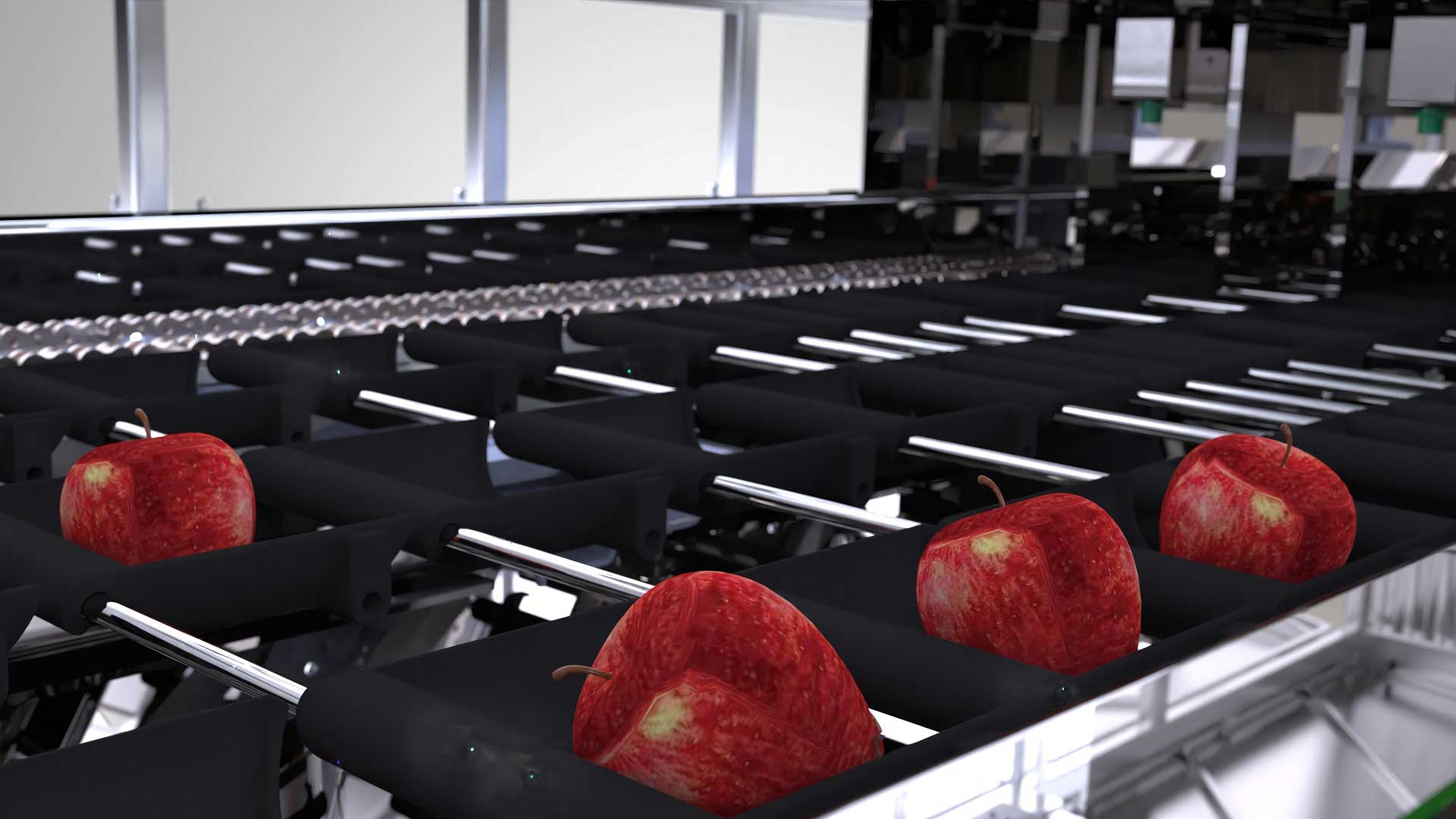

The vision system processes 9 apples per second across 3 lanes with 360° rotation on the conveyor for complete inspection. Sorting is performed into 24 grades based on colour, size, and defect with ±1mm accuracy for both size and defect detection. The entire plant is constructed in Stainless Steel AISI 304 and features remote maintenance capability with smart screen/phone control.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Apple Washing / Brushing / Vision Grading Plant do?
Complete apple grading plant with washing, brushing, and computer vision sorting. Capacity 5-10 TPH with 24-grade colour/size/defect classification.
What is the capacity of the Apple Washing / Brushing / Vision Grading Plant?
5 TPH / 10 TPH. Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What is the Apple Washing / Brushing / Vision Grading Plant made from?
Stainless Steel AISI 304. Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Apple Washing / Brushing / Vision Grading Plant be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Apple Washing / Brushing / Vision Grading Plant?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
