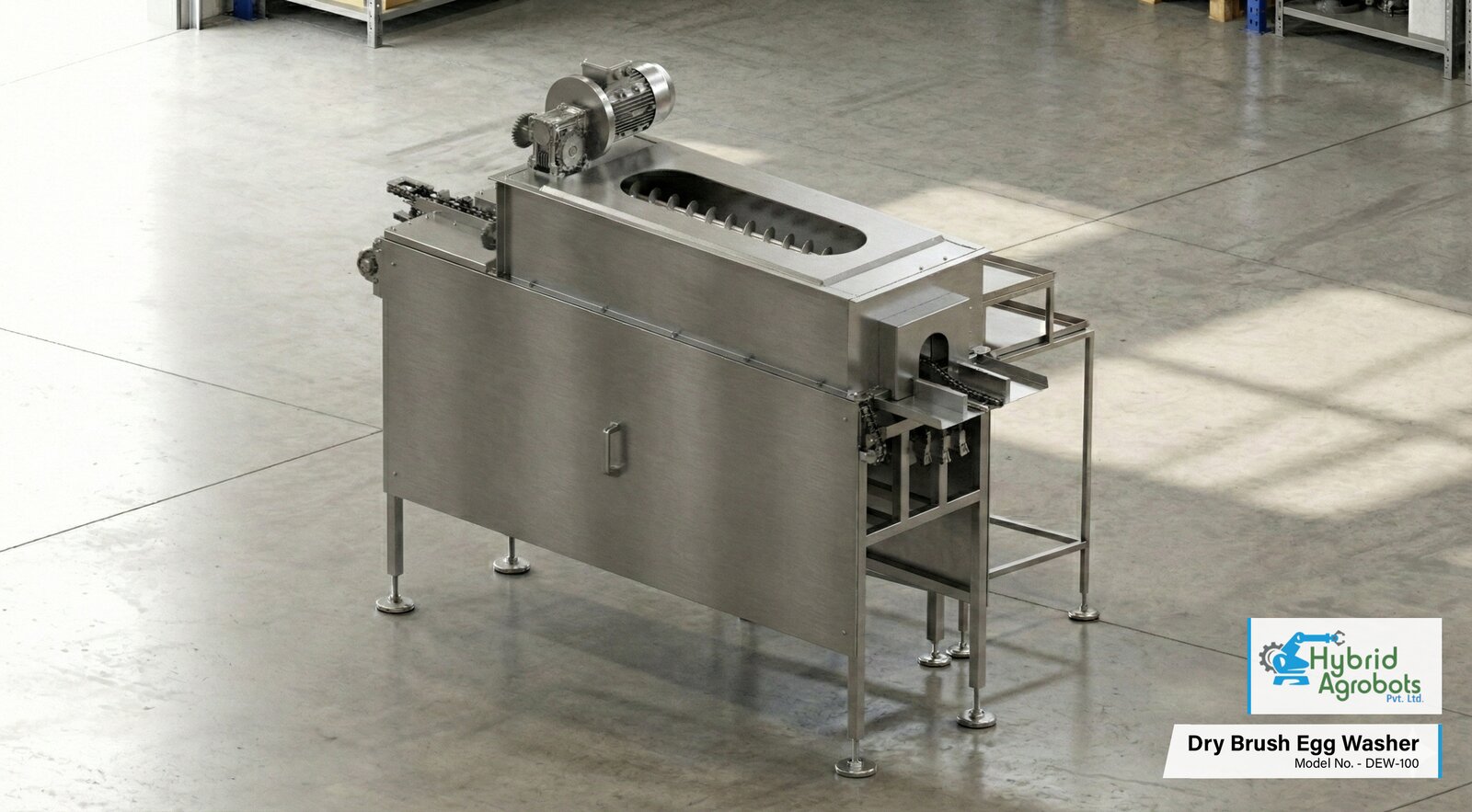

Egg Washing & Drying Unit
Standalone egg washing and drying machine for hygienic egg processing. Available as the EW-100 water washer and the DEW-100 dry-brush washer.
- Capacity
- 6,000-10,000 EPH
- Lanes
- 2
- Washing
- Pre-wash + final wash with nylon brushes
Built into the machine.
- Pre-wash and final wash with oscillating nylon brushes
- Recirculation tank with heater (40-45°C)
- Air knife drying from top and sides
- Temperature cut-off sensors for safety
- Recirculation pump with suction filter
- All contact parts in SS-304
- Optional pneumatic egg lifter (30 eggs)
- Optional oil spray unit
- Delta HMI/PLC/VFD control panel
The numbers.
| Models | EW-100 (water) / DEW-100 (dry brush) |
|---|---|
| Capacity | 6,000-10,000 EPH |
| Lanes | 2 |
| Washing | Pre-wash + final wash with nylon brushes |
| Water Temp | 40-45°C (thermostat controlled) |
| Recirculation Tank | 200-250 litres with heater |
| Drying | Air knife nozzles (top + sides) |
| Material | SS-304 (chain, frame, contact parts, guards) |
| Control | Delta HMI / PLC / VFD / Motor |
| Delivery | 10-12 weeks |
| Warranty | 12 months from invoice date |
About the Egg Washing & Drying Unit.
Our Egg Washing & Drying Unit is a dedicated machine for cleaning and drying eggs to meet food safety and hygiene standards. It comes in two versions: the EW-100 water washer, which uses hot water and oscillating brushes, and the DEW-100 dry-brush washer, which cleans without water where a dry process is preferred.
The system includes an infeed conveyor with 2-lane oriental unit for egg feeding (manual or pneumatic egg lifter), a pre-washing unit with oscillating soft nylon brushes and specially designed nozzles, a final washing unit with fresh hot water, a recirculation tank (250-litre capacity) with heater set at 40-45°C, a dryer section with air knife nozzles for complete drying from top and sides, a recirculation pump with suction filter to prevent debris from entering nozzles, temperature cut-off sensors, collection table, and a Delta HMI/PLC/VFD/Motor powder-coated control panel.
All chain, frame, contact parts, and guarding are manufactured in SS-304. Optional add-ons include a pneumatic egg holder/lifter (30 eggs) and oil spray unit.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Egg Washing & Drying Unit do?
Standalone egg washing and drying machine for hygienic egg processing. Available as the EW-100 water washer and the DEW-100 dry-brush washer.
What is the capacity of the Egg Washing & Drying Unit?
6,000-10,000 EPH. Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What is the Egg Washing & Drying Unit made from?
SS-304 (chain, frame, contact parts, guards). Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Egg Washing & Drying Unit be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Egg Washing & Drying Unit?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
Request a quote for the Egg Washing & Drying Unit.
Share your throughput, produce and grades, we’ll send a configured spec and price. No spam, ever.
