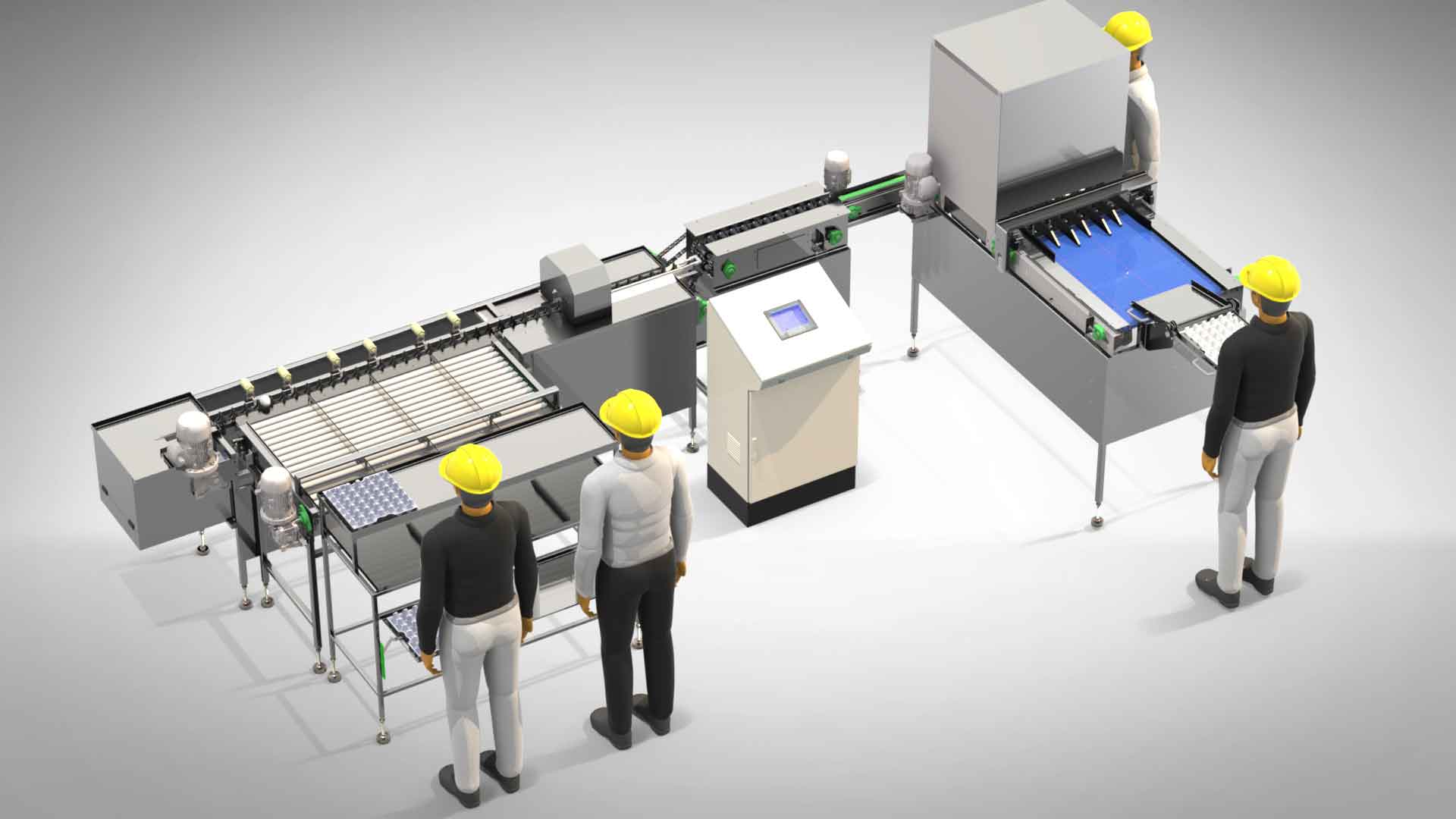

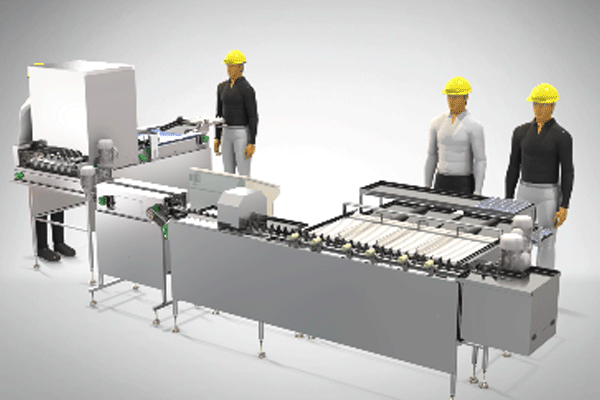

Mechanical Egg Grading Machine
Budget-friendly mechanical egg grader in 2-lane (3,500 EPH) and 3-lane (4,500 EPH) variants with 5 weight grades, ideal for small to medium poultry farms.
- Capacity
- 3,500 EPH (2-Lane), 4,500 EPH (3-Lane)
- Lanes
- 2 or 3
- Grades
- 5 weight grades (configurable)
Built into the machine.
- Two variants: 2-lane (3,500 EPH) and 3-lane (4,500 EPH)
- Infeed with orienter for uniform alignment
- 5 weight grades, customer configurable ranges
- Mechanical weight calibration, ±1-1.5g accuracy
- Soft-drop collection, less than 1% breakage
- Designed for continuous 8-10 hour operation
- Overload release mechanism to prevent damage
- Low power, only 0.5-1 HP motor required
- Optional 2-lane or 3-lane egg candling machine
- SS (stainless steel) build available on request
- Installation and commissioning included
The numbers.
| Models | 2-Lane / 3-Lane |
|---|---|
| Capacity | 3,500 EPH (2-Lane), 4,500 EPH (3-Lane) |
| Lanes | 2 or 3 |
| Grades | 5 weight grades (configurable) |
| Accuracy | ±1-1.5 grams (mechanical) |
| Motor | 0.5-1 HP |
| Power Supply | 220-240V Single Phase |
| Consumption | 0.5-0.8 kW |
| Dimensions | 2800-3200 x 1100-1300 x 1200-1400 mm |
| Weight | Approx. 220-260 kg |
| Construction | MS heavy-duty welded frame, powder-coated |
| Options | Add-on 2/3-lane egg candling machine · SS build on request |
| Breakage Rate | Less than 1% |
| Delivery | 7-8 weeks |
| GST | 5% |
| Warranty | 12 months from invoice date |
About the Mechanical Egg Grading Machine.

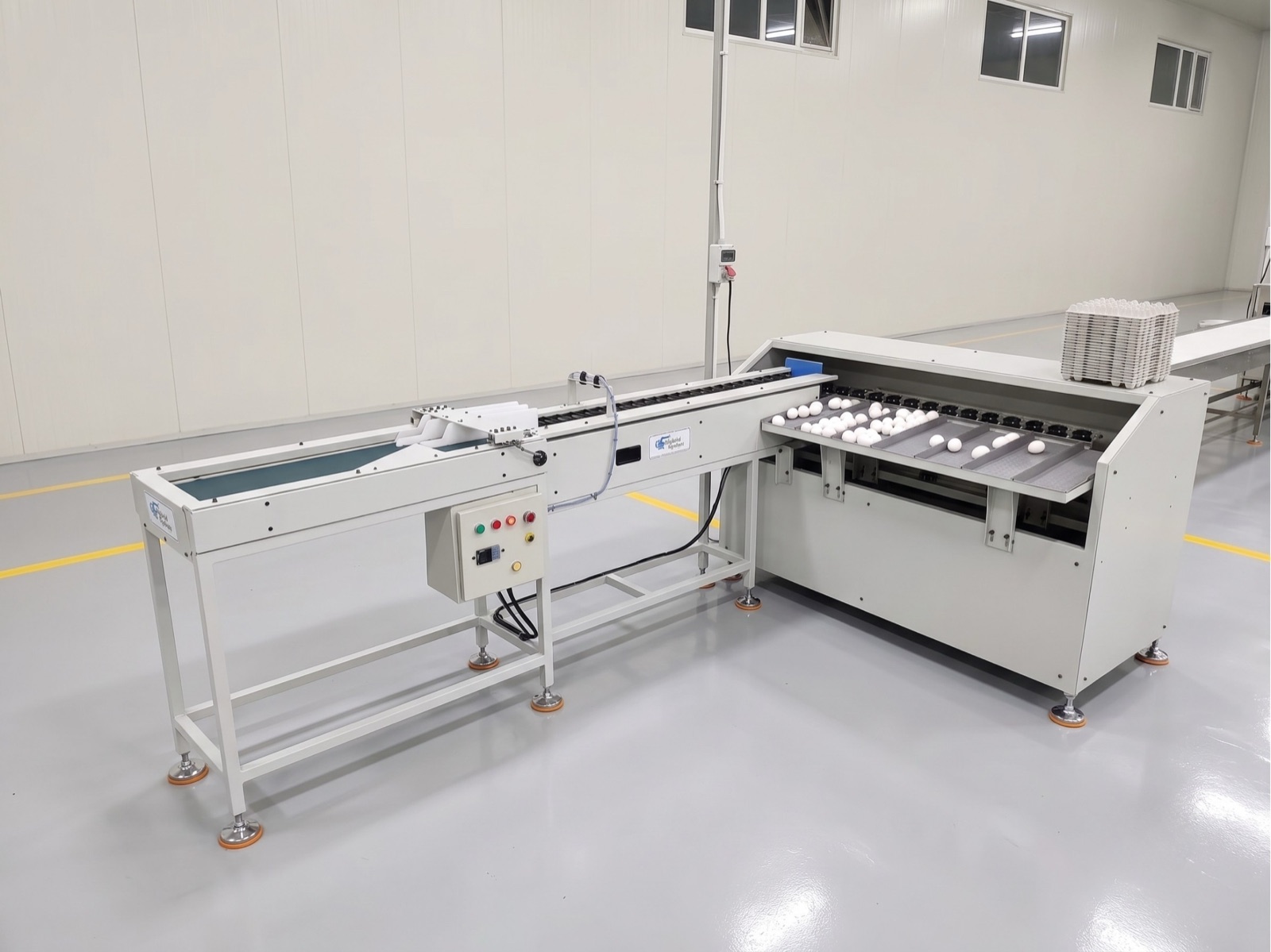

The mechanical egg grader is a weight-based grading system designed for small and medium poultry farms and packing operations, available in two variants: a 2-lane machine grading 3,500 eggs per hour and a 3-lane machine grading 4,500 eggs per hour. Both perform weight-based grading into 5 categories with dedicated output lanes, complete with infeed orienter, grading unit, and collection system.
The manual infeed roller conveyor with lane orienter aligns eggs uniformly for accurate weight measurement using smooth MS rollers with food-safe coating and vibration-free operation. The mechanical grading unit provides 5 customer-configurable weight categories with ±1-1.5g accuracy, featuring an overload release mechanism and robust MS chassis. The two variants are near-identical in construction; the 3-lane is slightly larger for the higher throughput.
Five dedicated collection lanes with soft-drop design reduce shell cracks, and easy-remove MS bins/trays simplify packing. The machine is designed for continuous 8-10 hour operation with less than 1% breakage rate under normal conditions. An optional 2-lane or 3-lane egg candling machine can be added to the line to match your grader. Standard construction is mild steel (MS); a stainless steel (SS) build is available on request. Installation and commissioning are included in the standard package.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Mechanical Egg Grading Machine do?
Budget-friendly mechanical egg grader in 2-lane (3,500 EPH) and 3-lane (4,500 EPH) variants with 5 weight grades, ideal for small to medium poultry farms.
What is the capacity of the Mechanical Egg Grading Machine?
3,500 EPH (2-Lane), 4,500 EPH (3-Lane). Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What power supply does the Mechanical Egg Grading Machine need?
220-240V Single Phase. Confirm what is available at the installation point before ordering: single-phase and three-phase sheds need different preparation.
What is the Mechanical Egg Grading Machine made from?
MS heavy-duty welded frame, powder-coated. Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Mechanical Egg Grading Machine be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Mechanical Egg Grading Machine?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
