Vision Grading Machine (VG 600)
Computer vision grading machine with high-end cameras and AI algorithms for accurate fruit sorting by size, colour, shape, and defect. 2-10 TPH capacity.
- Capacity
- 2 / 5 / 10 TPH
- Lanes
- 1 / 2 / 4
- Throughput
- 9 fruits/sec (3 lanes)
Built into the machine.
- Diameter measurement accuracy of ±1mm
- External defect detection as small as 1mm
- Colour grading, multiple shade grades
- Shape and maturity analysis
- V-Belt singulator for gentle single-fruit feeding
- High-accuracy Class-C4 load cells for weight grading
- Soft nylon and horse hair brushes for cleaning/polishing
- High-strength steel construction (ISO-4923, Grade-210/250)
- Low power consumption and maintenance
- Multiple emergency stop switches
The numbers.
| Model | VG 600 |
|---|---|
| Capacity | 2 / 5 / 10 TPH |
| Lanes | 1 / 2 / 4 |
| Throughput | 9 fruits/sec (3 lanes) |
| Size Accuracy | ±1mm diameter |
| Defect Detection | ±1mm (external) |
| Grades | 2-3 colour + 6 size + 1-2 defect/rejection |
| Load Cell | Class-C4 high accuracy |
| Construction | High-strength steel IS-4923, YST 210/250 |
| Brushes | Soft nylon + horse hair rollers |
| Suitable For | Apples, oranges, kinnow, tomatoes, avocados |
| Delivery | 12-16 weeks |
| Warranty | 12 months from invoice date |
About the Vision Grading Machine (VG 600).
The Vision Grading Machine (Model VG 600) is an advanced equipment designed to accurately grade fruits, particularly apples, using computer vision technology. The machine incorporates high-end cameras, sensors, and intelligent algorithms to measure various attributes of each fruit in real time.

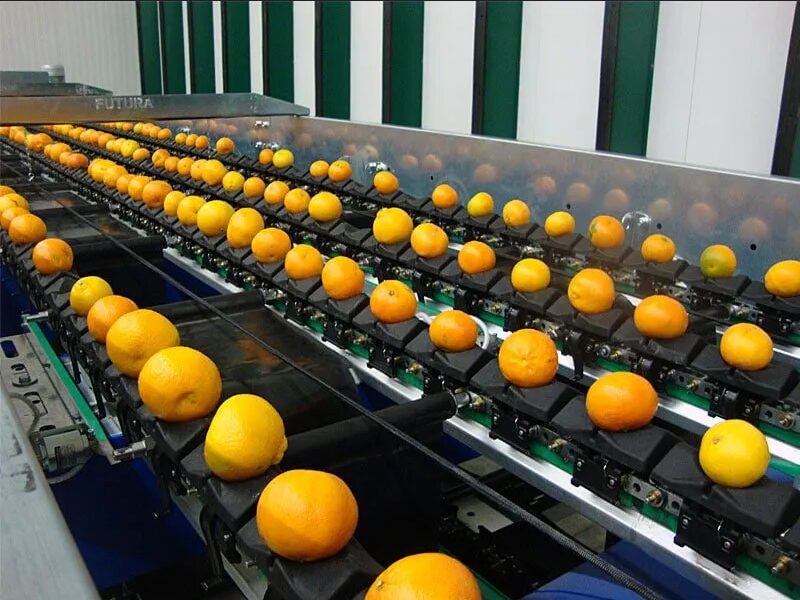

The system uses high-resolution cameras with controlled lighting to capture detailed images of each fruit as it passes on moving cups. Sophisticated algorithms analyze size (±1mm diameter accuracy), colour (multiple shade grades), shape, maturity, and external defects (detection as small as 1mm). Fruits are automatically diverted into designated outlets based on grading logic.
The V-Belt singulator deposits fruits one by one into weighing cups, with a bristle roller at the end to reduce impact. High-accuracy Class-C4 load cells measure weight, and the vision unit handles 9 apples per second across 3 lanes. The grading process is gentle, soft nylon and horse hair brushes enhance natural fruit shine while the gentle rubbing cleans without damage.
Available in 2 TPH, 5 TPH, and 10 TPH configurations with colour + size + defect grading into 6+ grades plus rejection.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Vision Grading Machine (VG 600) do?
Computer vision grading machine with high-end cameras and AI algorithms for accurate fruit sorting by size, colour, shape, and defect. 2-10 TPH capacity.
What is the capacity of the Vision Grading Machine (VG 600)?
2 / 5 / 10 TPH. Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What is the Vision Grading Machine (VG 600) made from?
High-strength steel IS-4923, YST 210/250. Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Vision Grading Machine (VG 600) be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Vision Grading Machine (VG 600)?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
