Automatic Egg Weighing & Grading Machine
Electronic egg grading with high-accuracy weighing, automatic candling and multi-grade sorting. HEG 10, HEG 30 and HEG 40, from 10,000 to 40,000 EPH.
- Capacity
- 10,000 / 30,000 / 40,000 EPH
- Lanes
- 1 (HEG 10) / 4 (HEG 30) / 6 (HEG 40)
- Weight Grades
- 3+1 or 4+1 (configurable)
Built into the machine.
- Electronic weight grading with ±1 gram accuracy
- 3+1 or 4+1 size grades (customer configurable)
- Automatic 360-degree candling for crack and dirt detection
- Pneumatic egg loader, suction of 30 eggs from tray
- Empty tray stacker, automatic stacking of 35-40 trays
- Delta/Fuji PLC, HMI, and VFD control system
- Siemens HMI/PLC/VFD available on premium models
- Food-grade nylon rollers and SS 304 chain
- Optional: washing, drying, UV, oil spray, printing, packing
The numbers.
| Models | HEG 10 / HEG 30 / HEG 40 |
|---|---|
| Capacity | 10,000 / 30,000 / 40,000 EPH |
| Lanes | 1 (HEG 10) / 4 (HEG 30) / 6 (HEG 40) |
| Weight Grades | 3+1 or 4+1 (configurable) |
| Weighing Accuracy | ±1 gram |
| PLC/HMI | Delta / Fuji Automation (Siemens optional) |
| Load Cell | Thames high-accuracy load cells |
| Power Supply | 3-phase 415V 50Hz |
| Rollers | Food-grade nylon |
| Chain | Diamond SS 304 |
| Frame | Mild steel with powder coating |
| Delivery | 12-14 weeks |
| Warranty | 12 months from invoice date |
About the Automatic Egg Weighing & Grading Machine.

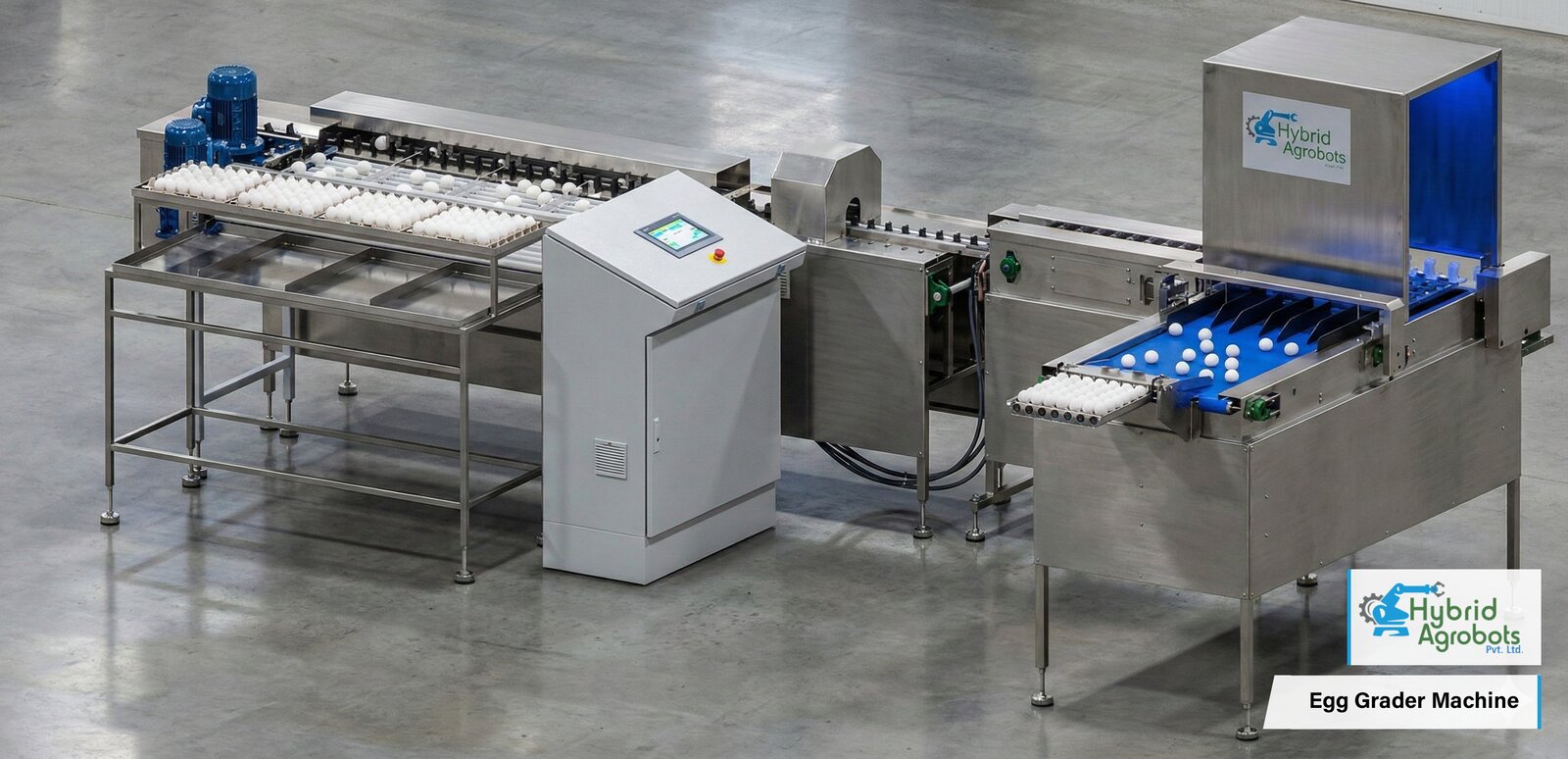

Our Automatic Egg Weighing & Grading Machine uses electronic load cells to weigh individual eggs with high accuracy, sorting them into weight-based grades. Available in three models, HEG 10, HEG 30, and HEG 40, to match your farm's capacity from 10,000 to 40,000 eggs per hour.
The system includes a 30-egg tray feeding conveyor with manual or pneumatic egg lifter, single or multi-lane roller infeed conveyor, automatic or manual candling section for 360-degree inspection of hairline cracks and dirt, electronic weight grader, interconnecting rod conveyors, and collection tables. All controlled by a Delta/Fuji Automation HMI, PLC, and VFD system for precise operation.
Eggs are graded into 3+1 or 4+1 weight categories (e.g., 45-50g, 50-55g, 55-60g, above 60g) with a dedicated defect grade for cracked or dirty eggs detected during candling. Optional add-ons include washing/drying units, UV sanitization, oil spray, printing, and automated packing machines.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Automatic Egg Weighing & Grading Machine do?
Electronic egg grading with high-accuracy weighing, automatic candling and multi-grade sorting. HEG 10, HEG 30 and HEG 40, from 10,000 to 40,000 EPH.
What is the capacity of the Automatic Egg Weighing & Grading Machine?
10,000 / 30,000 / 40,000 EPH. Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What power supply does the Automatic Egg Weighing & Grading Machine need?
3-phase 415V 50Hz. Confirm what is available at the installation point before ordering: single-phase and three-phase sheds need different preparation.
What is the Automatic Egg Weighing & Grading Machine made from?
Mild steel with powder coating. Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Automatic Egg Weighing & Grading Machine be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Automatic Egg Weighing & Grading Machine?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
