Egg Washing, Drying & Grading Unit
Complete egg processing unit combining washing, drying, UV sanitization, oil spray, and electronic weight grading. Model HEWG 06 with 6,000 EPH capacity.
- Capacity
- 6,000 EPH
- Lanes
- 2 (washing) / 1 (grading)
- Weight Grades
- 3
Built into the machine.
- Integrated washing, drying, UV, and grading in one line
- Pre-wash with recirculated hot water and 22 nylon brushes
- Final wash with fresh hot water supply
- Air knife drying from top and sides

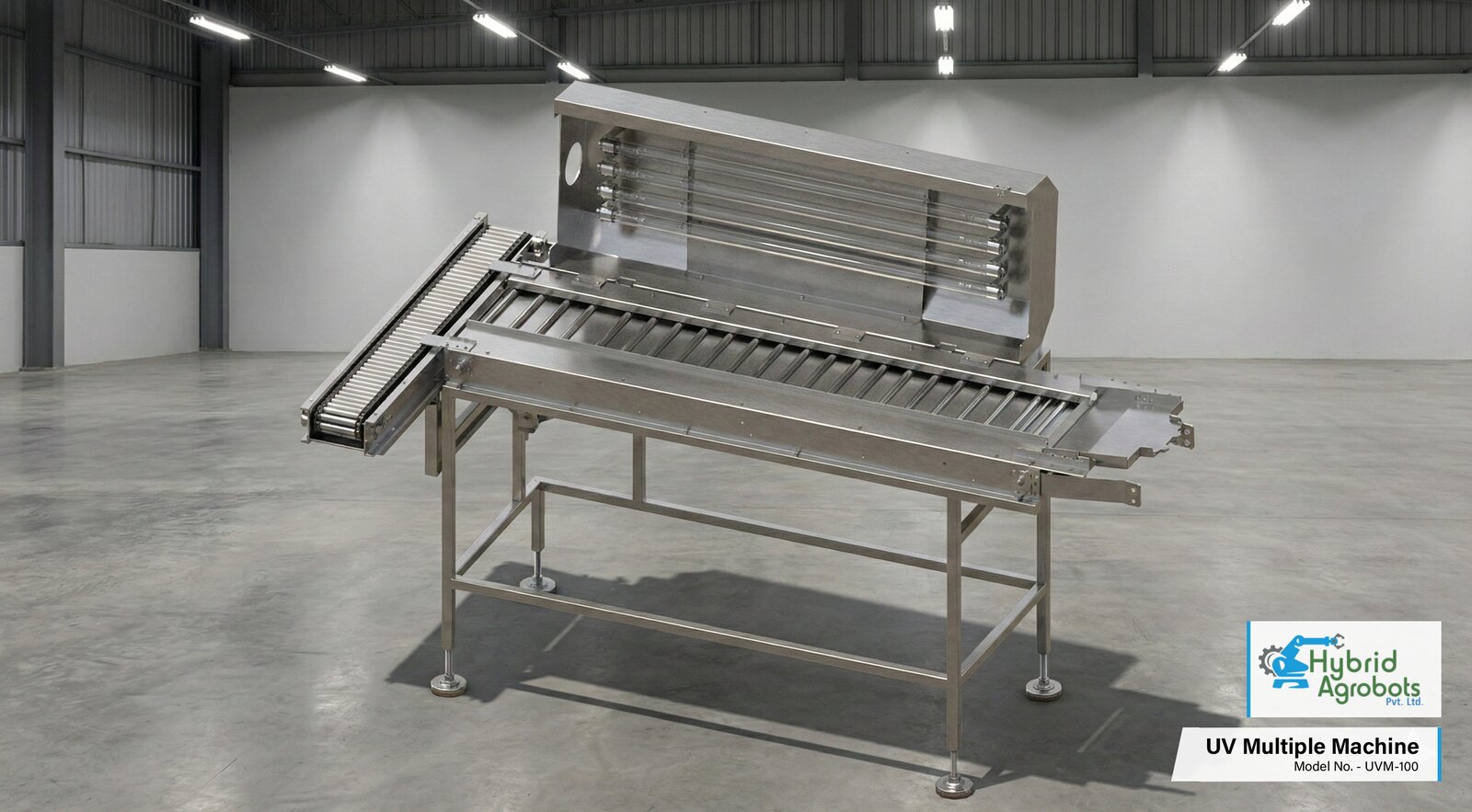

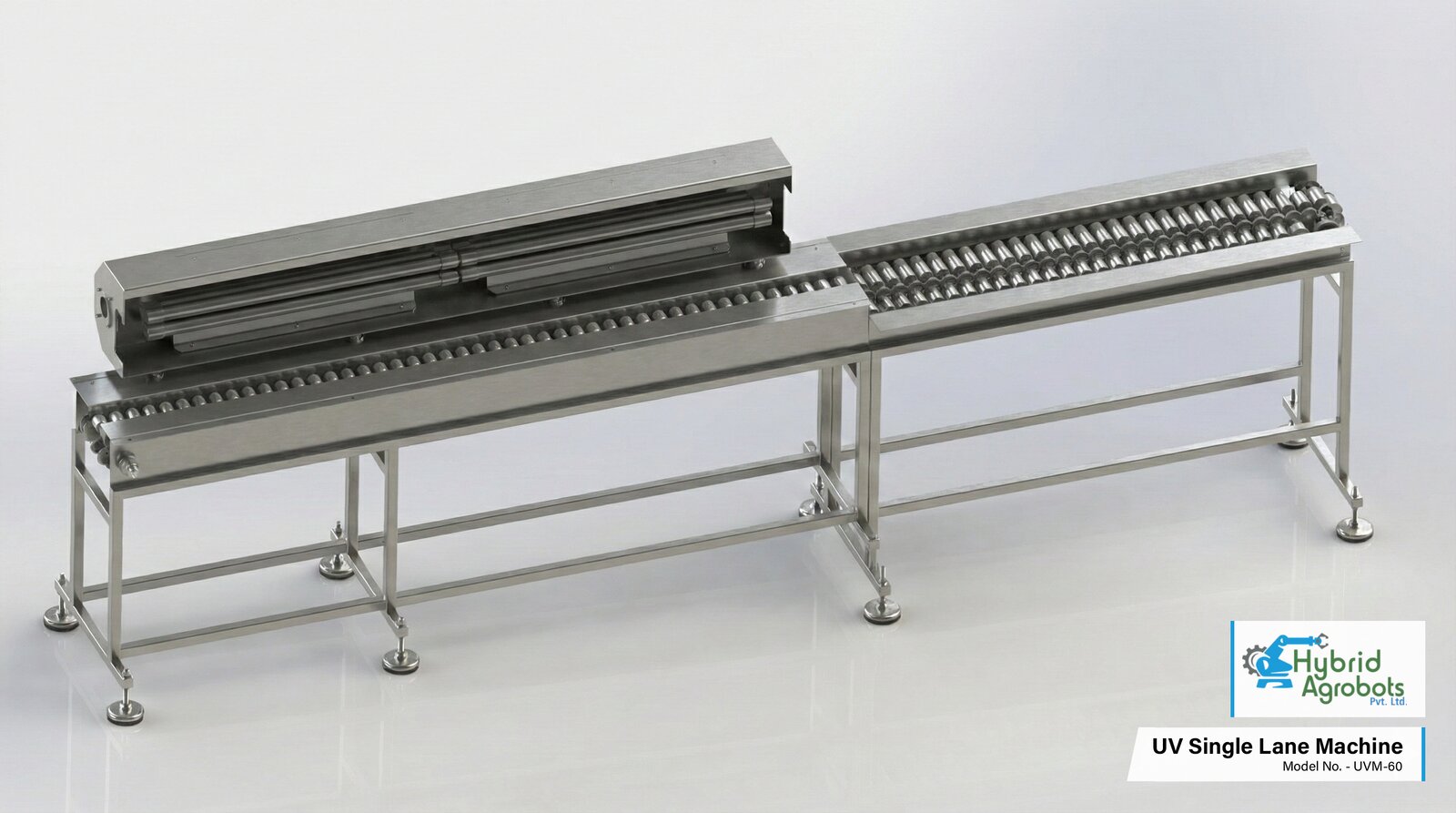

- UV sanitization station
- Electronic weight grader, 3 weight grades
- All contact parts in SS-304 stainless steel
- Delta HMI/PLC/VFD control system
- Optional oil spray unit available
The numbers.
| Model | HEWG 06 |
|---|---|
| Capacity | 6,000 EPH |
| Lanes | 2 (washing) / 1 (grading) |
| Weight Grades | 3 |
| Washing | Pre-wash + final wash with hot water |
| Drying | Multiple air knife system |
| Material | SS-304 (contact parts and structure) |
| Control | Delta HMI / PLC / VFD |
| Power Supply | 3-phase 415V 50Hz |
| Delivery | 10-12 weeks |
| Warranty | 12 months from invoice date |
About the Egg Washing, Drying & Grading Unit.
Our Egg Washing, Drying and Grading Unit (Model HEWG 06) is a complete integrated processing line that takes eggs through washing, drying, UV sanitization, and electronic weight grading in a single pass.
The system includes a two-lane feeding roller conveyor for manual egg feeding, a manual candling station where operators inspect eggs using light passed through from below, a pre-wash section using recirculated hot water with 22 oscillating nylon brushes, a final wash section using fresh hot water, a drying section with multiple air knife systems that remove water from top and sides, an interconnecting conveyor, an orienteer conveyor, a UV sanitization unit, an electronic weight grader for single-lane weighing with high accuracy, a grading section that separates eggs into 3 weight grades, collection tables, and a Delta HMI/PLC/VFD control panel.
All water contact parts and structural components are manufactured in SS-304 grade stainless steel for hygiene and durability.
Guides for choosing and running this kind of machine.
Before you enquire.
What does the Egg Washing, Drying & Grading Unit do?
Complete egg processing unit combining washing, drying, UV sanitization, oil spray, and electronic weight grading. Model HEWG 06 with 6,000 EPH capacity.
What is the capacity of the Egg Washing, Drying & Grading Unit?
6,000 EPH. Capacity is the figure to size against your daily volume, so tell us your peak hour rather than your average and we will confirm the right model.
What power supply does the Egg Washing, Drying & Grading Unit need?
3-phase 415V 50Hz. Confirm what is available at the installation point before ordering: single-phase and three-phase sheds need different preparation.
What is the Egg Washing, Drying & Grading Unit made from?
SS-304 (contact parts and structure). Where the line is washed down or an auditor will look at it, say so when you enquire and we will confirm the right specification.
Can the Egg Washing, Drying & Grading Unit be customised for our products?
Yes. Grading parameters can be configured for different varieties, sizes and market requirements, and the machine can be built to fit the room you already have. Tell us the product, the throughput you need and the space available.
What is the lead time for the Egg Washing, Drying & Grading Unit?
Standard machines take 4 to 8 weeks from order confirmation to dispatch. Custom-engineered machines and complete plants take 8 to 16 weeks depending on complexity. Installation and commissioning take a further 1 to 2 weeks on site, and you get a dated project timeline at the quotation stage.
Do you install and commission the machine?
Yes. Factory-trained engineers travel to your site, install the machine, connect it to your existing line, calibrate it and test it. Operator training usually takes 3 to 5 days.
What after-sales support is included?
Spare parts supply, technical support by phone and WhatsApp, on-site repair, and Annual Maintenance Contracts. AMC customers get priority support, scheduled preventive maintenance visits and discounted parts.
Request a quote for the Egg Washing, Drying & Grading Unit.
Share your throughput, produce and grades, we’ll send a configured spec and price. No spam, ever.
